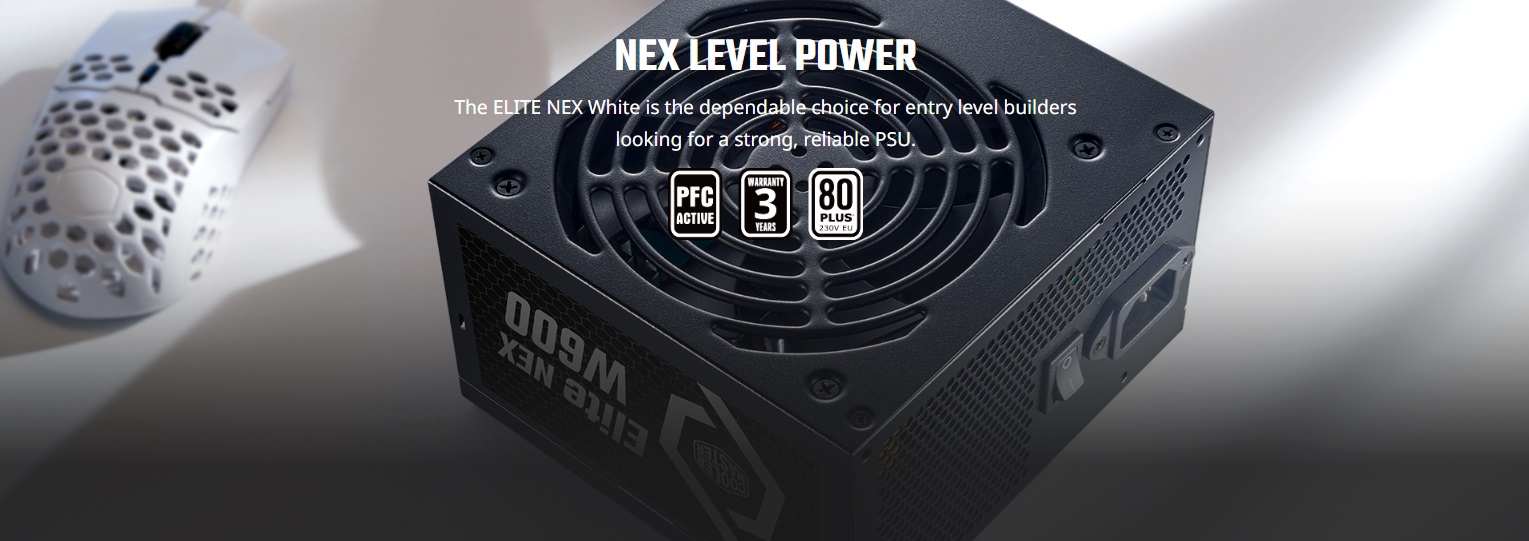

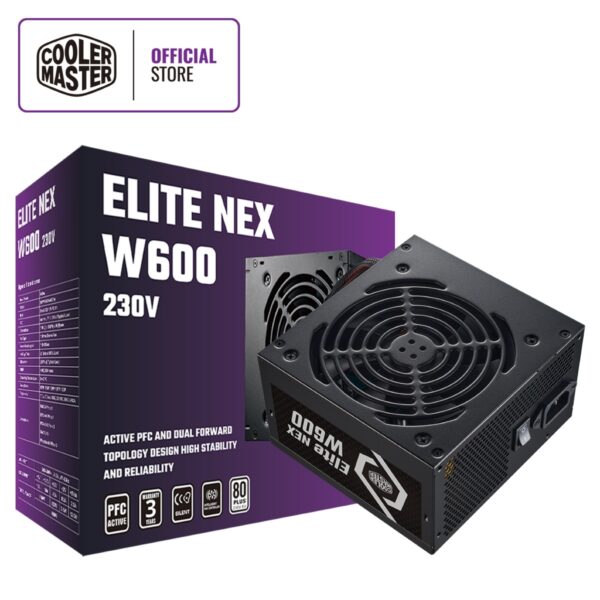

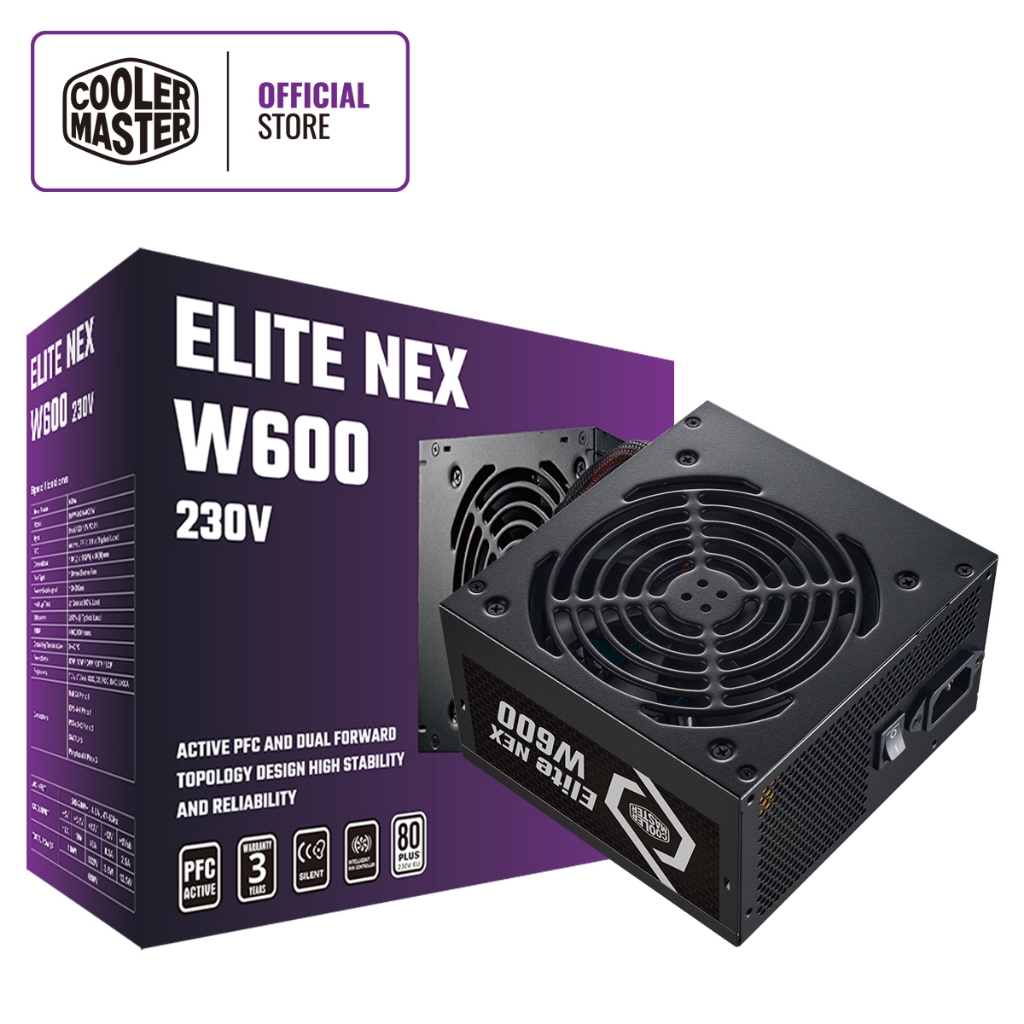

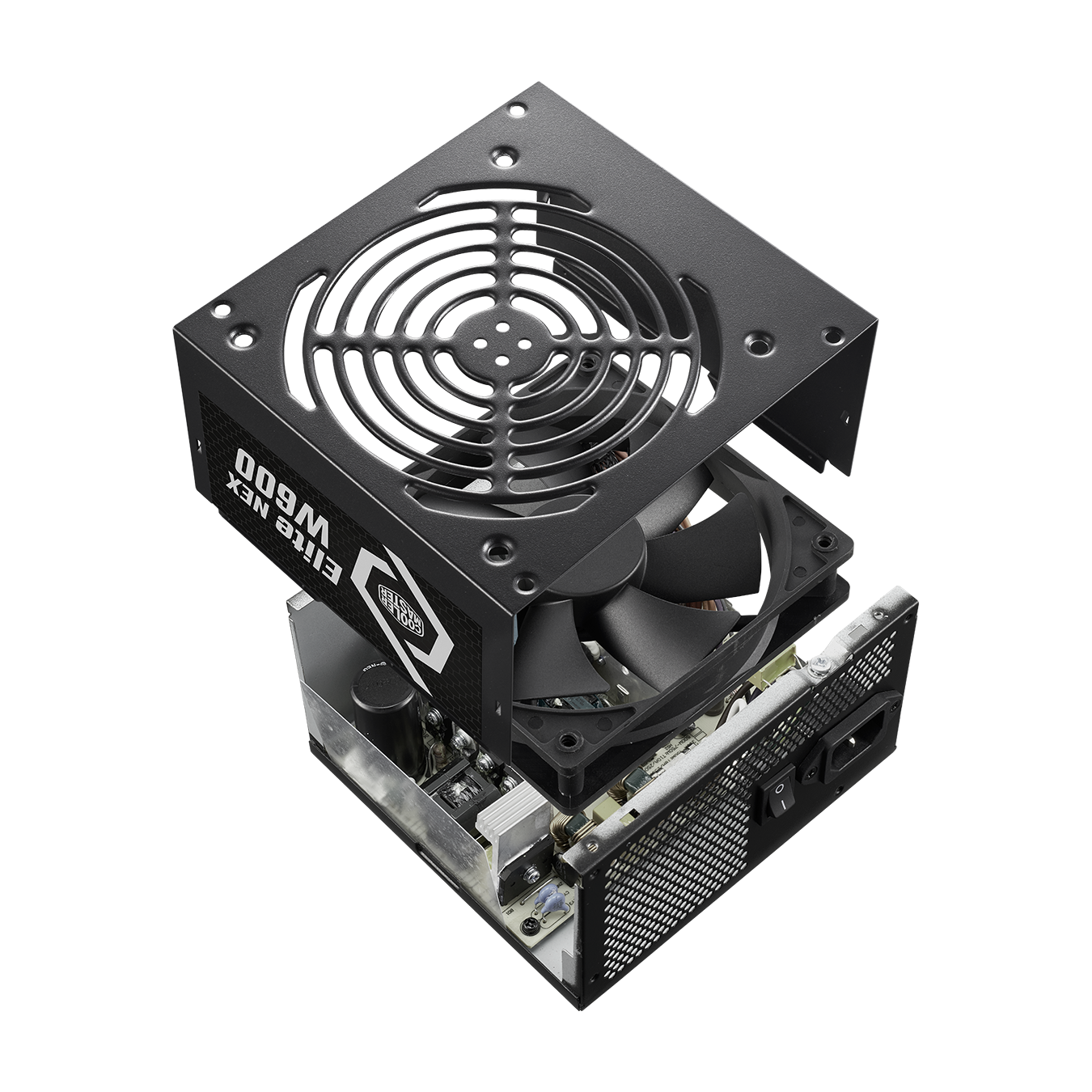

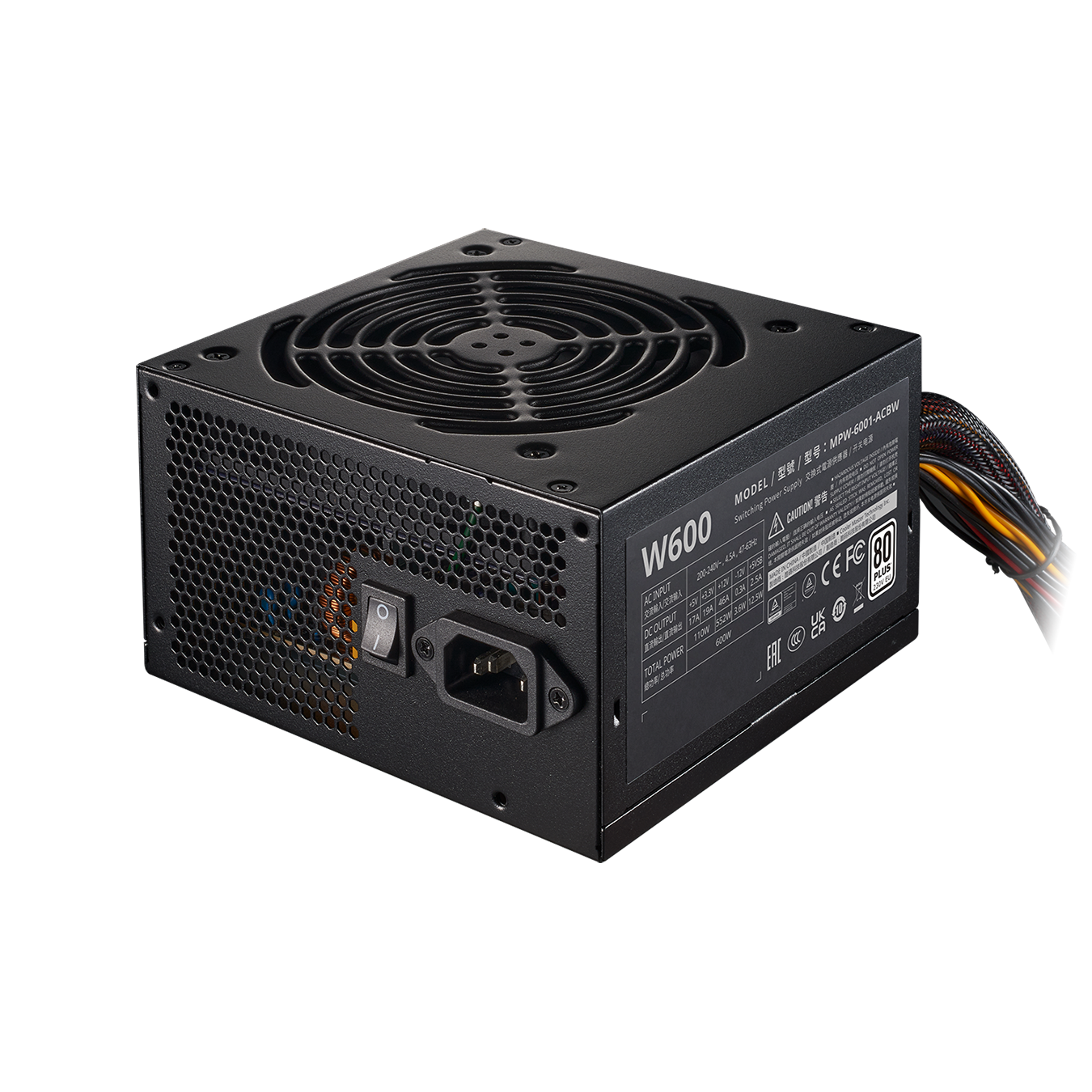

ELITE NEX WHITE W600 230V POWER SUPPLY ; 80 Plus standard certified efficiency ; NON-MODULAR PSU ; Active PFC ; dual forward topology design ; 120MM FAN ; ATX 12V Ver. 2.41 – BLACK

$66.00

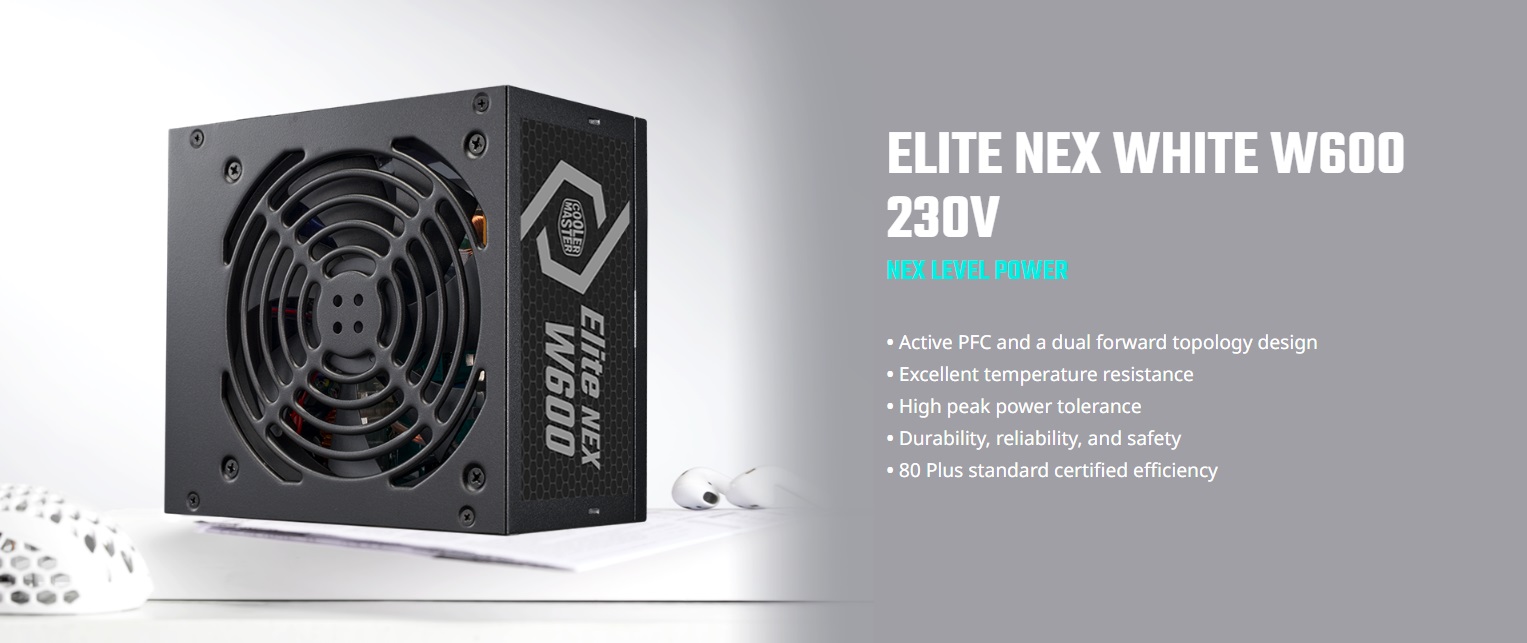

ELITE NEX WHITE W600 230V NEX

• Active PFC and a dual forward topology design
• Excellent temperature resistance
• High peak power tolerance expert zone
• Durability, reliability, and safety
• 80 Plus standard certified efficiency

EXPERT SPECS

Model

MPW-6001-ACBW-B

ATX Version

ATX 12V Ver. 2.41

PFC	Active PFC

Input Voltage

200-240V

Input Current

4.5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

Sleeve Fan

Efficiency

≥ 85% @ Typical Load

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

Power Good Signal

100 – 500 ms

Hold Up Time

≥10ms at 100% load expert zone

MTBF	>100,000 Hours

Protections

OVP, OPP, SCP, UVP, OTP, Inrush Protection

Regulatory

TUV, cTUVus, CE, FCC, CCC, EAC, UKCA expert zone

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

SATA Connectors

5

Peripheral 4 Pin Connectors

3

PCI-e 6+2 Pin Connectors

2

Series

Elite Series

80 Plus

Standard

Modular

Non Modular

Wattage

500 to 750W

SKU MPW-6001-ACBW-BEU Genre COMPUTER PARTS, Power Supplies
