Line Interactive Uninterruptible Power Supply Offline UPS 2000VA / 700W, 12V 9Ah*2 – LED Light – EU Socket, EU Plug – 230VAC, 60/50HZ – Short Circuit ,Overload, Battery Discharge And Overcharge, Surge Protection – For Home Office, Desktop PC & Home Electronics

Expert Features

•Excellent microprocessor control optimizes reliability

•Wide range of power input

•boost and buck AVR for voltage stabilization

•Auto restart while AC is recovering

•Off mode charging function

•Simulated sine wave

•Cold start function

•Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.

•Display: LED display selection providing status, load and battery information

•Intelligent battery management

Expert Technical Specs

Model	STE2000
Capacity	2000VA/700W
INPUT
Voltage	110/120 VAC or 220/230/240 VAC
Voltage Range	81-145VAC or 162-290VAC
Frequency Range	60/50 Hz (Auto sensing)
OUTPUT Voltage	110/120 VAC or 220/230/240 VAC
AC Voltage Ragulation (Bat Mode)	±10%
Frequency Range (Bat Mode)	60Hz or 50Hz ± 1Hz
Transfer time	Typical 2-6ms
Waveform (Bat Mode)	Simulated Sinewave
Battery
Battery Type&Number	12V 9Ah*2
Charging ability	4-6 hours recover to 90% capacity
Protection
Full protection	Overload, discharge and overcharge protection
INDICATIONS
LCD Display	AC/Battery Mode, Load/Battery Level, Input /Output Voltage ,Overload, Fault, and low Battery

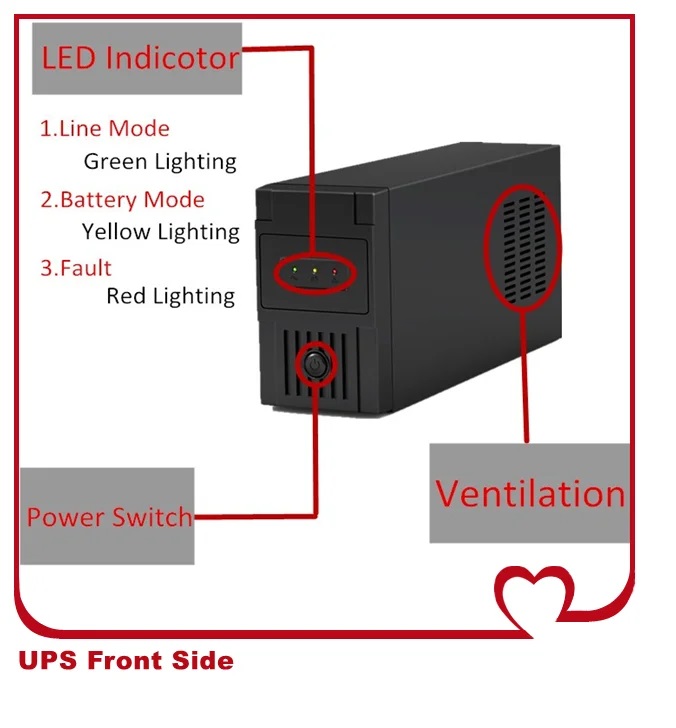

LED Display	AC Mode	Green lighting	The right green LED lighting& the 2nd to 5th green LEDs gradually lighting indicating load level
	Battery Mode	Yellow flashing	The right green LED flashing& the 2nd to 5th green gradually lighting indicating battery capacity
	Fault	Red lighting
Battery mode	Sounding every 10 seconds
Low battery	Sounding every second
Overload	Sounding every 0.5 seconds
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
Dimension, DWH(mm)	370135165
Net Weight (kgs)	11.5
Environment
Humidity	0-90% Relative Humidity 0-40 ℃ (Non-condensing)
Noisy Level	Less than 40dB

Description

ST2000

Offline UPS 2000VA 700W

Line Interactive Uninterruptible Power Supply Offline UPS 2000VA / 700W, 12V 9Ah*2 – LED Light – EU Socket, EU Plug – 230VAC, 60/50HZ – Short Circuit ,Overload, Battery Discharge And Overcharge, Surge Protection – For Home Office, Desktop PC & Home Electronics
